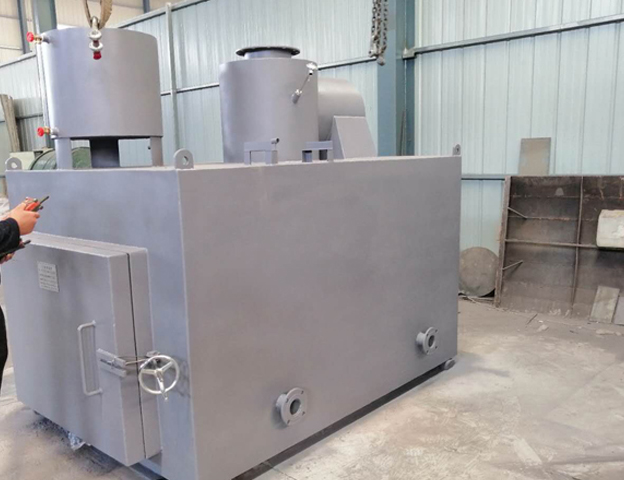

A Waste Gas Incinerator is an industrial air pollution control system that uses heat generated by auxiliary fuel combustion to raise combustible exhaust gases to the required reaction temperature, allowing harmful organic components to undergo oxidation and decomposition.
Unlike solid waste incinerators, this equipment is designed primarily for gaseous pollutants rather than solid materials.
When organic compounds contained in industrial exhaust gas enter the combustion chamber, they are heated and oxidized under controlled conditions. Through this thermal oxidation process, combustible organic substances are converted mainly into carbon dioxide (CO2) and water vapor (H2O).
Waste gas incinerators are commonly applied in industrial processes that generate combustible or organic exhaust gases, including coating, drying, petrochemical production, pharmaceutical manufacturing, and copper-clad laminate production.
Depending on the heat utilization method, the system may be configured as a direct-fired waste gas incinerator or a regenerative waste gas incinerator.
Industrial exhaust gases can vary significantly according to production process, raw materials, and operating temperature.
Waste gas incineration is particularly suitable for processes where combustible organic compounds can be destroyed through thermal oxidation.
Typical applications include:
Coating production lines
Industrial drying equipment
Printing and coating processes
Copper-clad laminate production
Petrochemical plants
Pharmaceutical production
Chemical processing
Adhesive coating equipment
Industrial ovens
Processes generating combustible organic exhaust gas
Before equipment selection, buyers should provide the composition and operating conditions of the exhaust gas so that the combustion and heat recovery configuration can be evaluated correctly.
The operating principle is based on heating combustible exhaust gas to a temperature at which oxidation reactions can occur efficiently.
The overall process generally includes four stages:
Exhaust Gas Collection
Organic exhaust gas generated by production equipment is collected and introduced into the treatment system.
Waste Gas Preheating
Before entering the combustion chamber, the exhaust gas may be heated by a heat exchanger or regenerative material.
Thermal Oxidation
The preheated gas enters the combustion chamber, where auxiliary fuel and the burner provide the required heat. Combustible organic components are oxidized and decomposed.
Heat Recovery and Exhaust Discharge
Heat generated during combustion can be recovered through a heat exchanger and reused by production equipment. The treated gas is then discharged through the chimney.
This process not only treats harmful combustible gases but can also allow part of the generated thermal energy to be reused.
A typical industrial waste gas incinerator used in copper-clad laminate and similar production processes consists of several key sections.
Main Component | Primary Function |
|---|---|
Combustion Chamber | Provides the thermal environment required for oxidation of combustible organic gases |
Waste Gas Preheating Section | Raises incoming exhaust gas temperature before combustion |
Heat Recovery Heat Exchanger | Recovers useful heat generated by the incineration process |
Bypass System | Helps regulate the amount of heat transferred to downstream equipment |
Exhaust Chimney | Discharges treated exhaust gas from the system |
Each section plays a specific role in maintaining combustion efficiency and thermal balance.
The combustion chamber is the central treatment area of the waste gas incinerator.
Here, the burner flame provides the heat required to raise the incoming organic exhaust gas to its oxidation temperature.
Under suitable reaction conditions, combustible organic compounds are broken down and oxidized into simpler products, primarily H2O and CO2.
The combustion chamber must therefore provide stable operating conditions for the thermal oxidation process.
Its performance is influenced by factors such as:
Exhaust gas composition
Concentration of combustible components
Exhaust gas flow rate
Incoming gas temperature
Required oxidation temperature
Auxiliary fuel supply
Operating stability of the production line
These factors should be evaluated during equipment selection rather than using one standard combustion configuration for every industrial process.
Preheating is an important part of an industrial exhaust gas treatment system because it reduces the amount of additional heat required inside the combustion chamber.
The incoming waste gas can first pass through a heat exchange section where its temperature is increased before thermal oxidation.
Some systems use two waste gas heat exchangers.
In this arrangement:
The first heat exchanger operates at a relatively lower temperature.
The second heat exchanger further raises the exhaust gas temperature.
The treatment system can adjust the gas path according to the required preheating condition.
If the exhaust gas reaches a sufficiently high temperature after the first heat exchanger, it may enter the combustion chamber without passing through the second stage.
This design provides greater flexibility in controlling the inlet gas temperature.
A Direct-Fired Waste Gas Incinerator, also commonly referred to as a direct thermal oxidizer in industrial exhaust treatment applications, uses a combustion chamber to directly heat and oxidize combustible waste gas.
In the basic direct-fired configuration, the main objective is to destroy organic pollutants through combustion.
In some applications, especially copper-clad laminate manufacturing, the generated heat may also be recovered and returned to production equipment.
Waste gas preheating in a direct-fired system is typically achieved using a heat exchanger.
The incoming gas receives heat from the high-temperature exhaust stream before entering the combustion chamber.
This reduces the amount of auxiliary fuel required to bring the gas to the required reaction condition.
A Regenerative Waste Gas Incinerator uses heat-storage materials to capture and reuse thermal energy from the treatment process.
The main difference between a regenerative system and a conventional direct-fired system is the method used to preheat the incoming waste gas.
Feature | Direct-Fired Type | Regenerative Type |
Waste Gas Heating Method | Heat exchanger | Heat-storage material |
Typical Heat Storage Material | Not required | Honeycomb ceramic or similar material |
Preheating Method | Indirect heat exchange | Regenerative heat exchange |
Main Treatment Principle | Thermal oxidation | Thermal oxidation |
Heat Recovery Capability | Depends on heat exchanger design | Designed around regenerative heat reuse |
Both systems rely on the same fundamental principle: combustible exhaust gas is heated and oxidized.
The difference lies mainly in how thermal energy is recovered and transferred.
Regenerative systems commonly use honeycomb ceramic heat-storage materials, which can store heat from treated exhaust gas and transfer it back to incoming waste gas.
This allows the inlet gas to reach a relatively high preheating temperature.
Heat recovery is an important advantage of many industrial waste gas incineration systems.
Instead of allowing all combustion heat to leave through the chimney, a heat recovery heat exchanger can transfer part of the thermal energy to another medium.
Common heat transfer media include:
Fresh air
Thermal oil
The heated medium can then be supplied to production equipment requiring thermal energy.
In copper-clad laminate production, for example, recovered heat may be used to supply heat to coating or gluing equipment.
This creates a connection between exhaust gas treatment and the production heating process.
When air is used as the heat transfer medium, fresh air is delivered to the heat exchanger through a fan.
The air absorbs heat from the incineration system and is then sent to downstream production equipment.
Because production equipment may require a relatively stable hot-air temperature, a bypass air line can be incorporated into the system.
When the supplied hot-air temperature becomes too high, the bypass line can automatically introduce additional fresh air.
This helps adjust the final hot-air temperature before it reaches the production process.
Thermal oil can also be used to recover heat from the waste gas incinerator.
In this configuration, oil is circulated through the heat exchanger using a pump.
The oil absorbs heat and then transfers the thermal energy to production equipment.
After releasing its heat, the thermal oil returns to the incinerator heat exchanger and continues circulating.
To maintain the required oil temperature, the high-temperature gas generated in the combustion chamber can be divided into two flow paths.
One path sends heat directly toward the heat exchanger, while the second path acts as a bypass.
If the thermal oil temperature rises above the preset operating value, excess thermal energy can be directed through the bypass route and discharged toward the chimney.
This arrangement helps maintain the thermal oil within the temperature range required by the production process.
The choice between direct-fired and regenerative treatment should be based on actual process conditions.
A direct-fired incinerator may be considered where:
Exhaust gas conditions are relatively stable
A heat exchanger can provide sufficient preheating
The production line requires recovered hot air or thermal oil
The system design favors a relatively straightforward treatment structure
A regenerative incinerator may be considered where:
High levels of heat recovery are important
Higher waste gas preheating temperatures are required
Continuous industrial exhaust treatment is needed
Thermal energy reuse is an important part of the operating strategy
The appropriate configuration should be determined through project-specific evaluation.
For B2B buyers, accurate exhaust gas data is essential when selecting a waste gas incineration system.
Recommended project information includes:
Source of the industrial exhaust gas
Production process
Main gas composition
Organic compound concentration
Exhaust gas flow rate
Incoming gas temperature
Production operating hours
Required treatment method
Available auxiliary fuel
Whether heat recovery is required
Required hot-air or thermal-oil conditions
Local exhaust emission requirements
These parameters influence combustion chamber sizing, heat exchanger design, fuel demand, and heat recovery configuration.
An appropriately designed Waste Gas Incinerator can combine pollution control and energy utilization within one treatment process.
Potential project advantages include:
Thermal oxidation of combustible organic exhaust gases
Suitable for continuous industrial exhaust treatment
Direct-fired and regenerative configurations available
Waste gas preheating before combustion
Heat recovery from high-temperature exhaust gas
Recovered energy can support production heating
Air or thermal oil can be used as the heat transfer medium
Bypass control helps regulate recovered heat
Applicable to multiple industrial sectors
For production facilities with both exhaust treatment requirements and significant process heating demand, heat recovery can be an important consideration when designing the system.
The purpose of the waste gas incinerator is to thermally oxidize combustible harmful gases before they are discharged.
However, actual exhaust gas conditions differ between industries, and environmental requirements vary between countries and regions.
Before equipment design or purchase, users should confirm:
Target pollutants
Permitted emission levels
Required destruction performance
Exhaust temperature limitations
Local environmental approval requirements
Monitoring requirements
Production safety requirements
The final treatment process should be configured according to verified project data and applicable local environmental standards.
A Waste Gas Incinerator offers an industrial solution for treating combustible organic exhaust gas through preheating, controlled thermal oxidation, heat recovery, and exhaust discharge.
Compared with waste treatment equipment designed for solid materials, this system focuses specifically on gaseous pollutants generated during manufacturing processes.
With direct-fired and regenerative configurations available, the system can be adapted to different exhaust conditions and thermal recovery requirements.
For coating lines, drying processes, copper-clad laminate manufacturing, petrochemical production, pharmaceutical facilities, and other industrial applications, buyers can provide their exhaust gas composition, flow rate, operating temperature, production conditions, and heat recovery requirements to determine a suitable system configuration.
