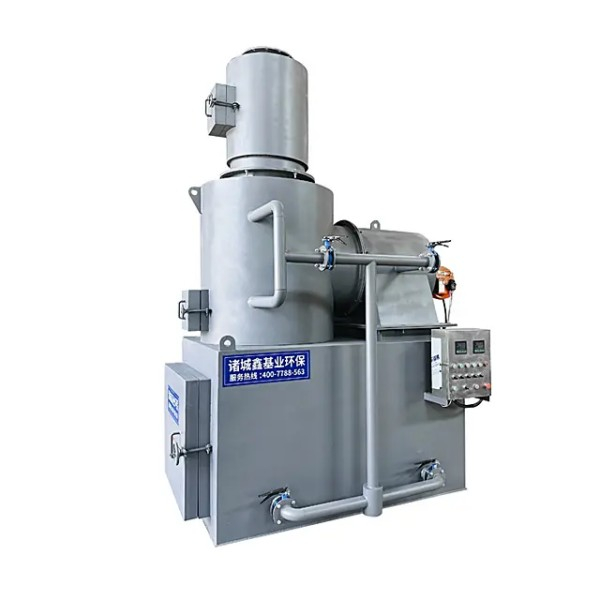

A Hospital Medical Waste Incinerator is specialized waste treatment equipment designed for the thermal treatment of medical waste generated by hospitals, clinics, healthcare facilities, laboratories, and related institutions.
Medical waste may contain plastics, glass products, residual medicines, contaminated packaging, and other potentially harmful materials. If such waste is discarded without proper treatment, it may create environmental and public health risks. Incineration provides a high-temperature treatment method that reduces combustible medical waste and converts much of it into ash, flue gas, and carbonized residue.
The medical waste incinerator integrates several operating processes into one system, including automatic feeding, sorting, drying, incineration, ash cleaning, dust removal, and automated control.
Its main systems include:
Waste pretreatment system
Incineration system
Flue gas and dust removal system
Auxiliary ignition and combustion system
This integrated design makes the equipment suitable for healthcare facilities and waste treatment projects requiring controlled medical waste incineration.
The hospital waste incinerator uses high-temperature combustion combined with secondary oxygen supply and secondary combustion treatment.
Key features include:
High-temperature medical waste incineration
Primary and secondary combustion chambers
Secondary air supply for improved combustion
Auxiliary burner support during startup or low-calorific-value waste treatment
Automatic ash discharge depending on furnace configuration
Integrated dust removal system
Automatic control of major operating processes
Suitable for different medical waste treatment requirements
Multiple furnace structures available for different waste characteristics
The actual furnace configuration should be selected according to waste composition, moisture content, required treatment capacity, operating method, and local environmental requirements.
The basic treatment process of a medical waste incinerator includes waste feeding, primary combustion, secondary combustion, ash handling, and flue gas treatment.
Medical waste is introduced into the primary combustion chamber manually or through a feeding system, depending on the selected incinerator structure.
Inside the primary chamber, waste is heated, dried, ignited, and burned. Combustible components gradually decompose and carbonize under high-temperature conditions.
Flue gas and incompletely burned combustible substances enter the secondary combustion chamber.
Additional air and auxiliary combustion are introduced to promote further decomposition and combustion of remaining combustible components.
After combustion is completed, residual ash and carbonized material are discharged from the furnace.
The generated flue gas passes through the configured dust removal system before being discharged through the exhaust system.
Actual discharge requirements should be determined according to local environmental regulations and the specific waste treatment project.
Different medical waste compositions and operating conditions may require different furnace structures. Common medical waste incinerator designs include rotary kiln incinerators, fixed grate incinerators, and gasification pyrolysis incinerators.
Incinerator Type | Main Characteristics | Typical Suitability |
|---|---|---|
Rotary Kiln Incinerator | Rotating cylindrical furnace, continuous material movement, suitable for complex waste | Solid, semi-solid, liquid, high-moisture medical and hazardous waste |
Fixed Grate Incinerator | Simple structure, manual feeding and ash handling, intermittent operation | Smaller quantities of relatively combustible waste |
Gasification Pyrolysis Incinerator | Primary and secondary combustion chambers with controlled airflow | Medical waste requiring staged combustion and secondary treatment |
The rotary kiln medical waste incinerator is one of the commonly used furnace structures for handling different types of solid, semi-solid, and liquid waste.
The kiln consists of a horizontal rotating cylindrical body installed at a slight inclination. As the cylinder rotates, waste gradually moves from the front toward the discharge end.
During this movement, the waste passes through several treatment stages:
Drying
Heating
Ignition
Combustion
Burnout
Ash discharge
The rotating movement allows the waste to maintain contact with combustion air during the treatment process.
According to the supplied equipment information, the kiln shell is manufactured from carbon structural steel plate, while the inside uses acid-resistant refractory clay bricks.
Materials that are not completely decomposed in the rotary kiln enter the secondary combustion chamber for further treatment.
The secondary chamber uses additional air and auxiliary fuel injection to allow flue gas and oxygen to mix under high-temperature conditions. Its airflow can be adjusted according to the oxygen content of the outlet flue gas.
For system protection, an emergency discharge safety valve can also be installed at the top of the secondary combustion chamber and configured to open automatically under preset conditions.
The fixed grate incinerator has a comparatively simple furnace structure.
The outer shell is fabricated from steel plate, while refractory materials and insulation materials are installed inside the combustion chamber. Waste can be fed into the furnace from the upper, front, or side feeding position.
Waste is placed evenly on the fixed grate. Combustion air enters from below the grate through natural ventilation or forced air supplied by a fan.
During operation, the waste layer may need to be manually turned to promote more complete combustion.
According to the supplied technical information:
Primary chamber operating temperature is generally controlled at approximately 700°C–800°C
Secondary combustion chamber temperature is generally controlled at approximately 900°C–1000°C
The auxiliary burner can be used during startup, shutdown, or when the waste has a low heating value.
Compared with more automated structures, the fixed grate furnace has several limitations. Manual operation is more intensive, treatment is usually intermittent, and incomplete mixing may result in insufficient combustion.
Therefore, it is generally less suitable for large quantities of difficult-to-burn solid waste.
The gasification pyrolysis incinerator contains a primary combustion chamber and a secondary combustion chamber.
The furnace body is made of welded steel plate with refractory material installed inside. The chambers are separated by furnace walls, and the direction of gas flow changes continuously inside the furnace.
This airflow design promotes mixing of combustible gases and combustible particles before they enter the secondary chamber.
Waste enters the primary chamber through the feeding hopper and chute. The primary chamber is heated through refractory walls or an auxiliary burner.
Combustion air can be supplied from multiple positions, including:
Bottom
Top
Front section
Large combustible particles are further burned before entering the secondary chamber.
According to the supplied product information, typical operating conditions include:
Treatment Stage | Temperature |
Primary Combustion Chamber | 500°C–800°C |
Secondary Combustion Chamber | 900°C–1100°C |
Secondary Chamber Retention Time | More than 2 seconds |
Auxiliary burners are installed on the furnace walls and can be used during startup or when additional heat is required to maintain operating temperature.
For B2B buyers, selecting a medical waste incinerator should not be based only on furnace size.
Several project conditions should be evaluated before equipment selection:
Type of medical waste
Daily waste generation
Moisture content
Percentage of plastic and other combustible materials
Whether liquid or semi-solid waste must be treated
Required operating hours
Manual or automatic feeding preference
Available installation space
Local fuel availability
Local emission requirements
Required ash removal method
For example, a rotary kiln may be considered where waste composition is complex or contains relatively high-moisture materials, while a fixed grate system may be more appropriate for simpler and smaller-scale treatment requirements.
The equipment can be applied in medical and healthcare waste treatment projects such as:
Hospitals
Clinics
Medical centers
Healthcare facilities
Medical laboratories
Medical waste collection facilities
Centralized healthcare waste treatment stations
Emergency medical facilities
Remote healthcare projects
The waste composition and local regulations should always be confirmed before selecting the treatment configuration.
A hospital medical waste incinerator should be operated together with a suitable flue gas treatment system.
The supplied equipment design incorporates secondary combustion, additional oxygen supply, and dust removal to support improved combustion and emission control.
However, environmental standards vary between different countries and regions. Buyers should confirm applicable requirements for:
Permitted medical waste categories
Flue gas emissions
Dust and particulate emissions
Ash disposal
Installation permits
Operating procedures
Equipment configuration should then be adapted according to the specific project requirements.
A properly configured Hospital Medical Waste Incinerator provides healthcare facilities with an integrated approach to medical waste treatment.
By combining waste pretreatment, combustion, secondary combustion, ash discharge, dust removal, and automatic control, the system can simplify the treatment workflow while reducing the volume of combustible medical waste.
For hospitals, clinics, healthcare facilities, and medical waste treatment companies, selecting the correct furnace structure is essential for achieving stable operation and matching actual waste characteristics.
To receive a suitable equipment recommendation, buyers can provide details including waste type, daily treatment requirement, installation location, available fuel, and local environmental standards when requesting a quotation.
