Escalating landfill costs, strict environmental regulations, and circular economy demands force facility operators to completely overhaul their end-of-life material management. Processing commercial volumes of refuse requires complex engineering decisions. You must balance high initial capital expenditures with ongoing operating expenses. Planners deal with strict emission compliance parameters and highly unpredictable secondary disposal costs. The nuances of vendor service-level agreements also directly impact long-term financial viability.
This technical guide provides a rigorous financial and operational framework for comparing thermal destruction technologies. We objectively analyze capacity limits, baseline compliance requirements, automation capabilities, and energy recovery mechanics. You will understand how these factors apply across municipal, industrial, and highly specialized applications. Our structured analysis eliminates guesswork and facilitates an evidence-based procurement process for your next Waste Incinerator project. We deliver the engineering realities you need to specify, procure, and operate these massive thermal assets safely.
Waste Characterization Drives Design: The fundamental choice between grate, rotary kiln, or fluidized bed systems depends entirely on the moisture content, calorific value, and homogeneity of your specific waste stream.
Energy Recovery Dictates ROI: Integrating an incinerator waste heat boiler offsets operational fuel costs and dramatically shortens the payback period, shifting the system from a pure liability to an energy asset.
Compliance is a Continuous Cost: Advanced flue gas cleaning systems (scrubbers, bag filters, SNCR) often account for up to 40% of the total facility footprint and capital cost.
Modularity vs. Scale: Decentralized general waste incinerators offer lower CapEx and faster deployment for isolated facilities, while mass-burn municipal systems require decade-long planning and high waste volume guarantees.
Aftermarket Support Defines Lifecycle Value: A favorable upfront vendor quote can be negated by poor aftermarket parts availability, limited refractory warranties, and lack of predictive maintenance automation.
You cannot specify a thermal unit without exact feedstock data. First, define the physical state of your material. Categorize it as solid, liquid, or sludge. Next, determine the precise energy density. The calorific value dictates the autothermal operation threshold. This represents the specific point where combustion sustains itself without supplementary fuel input. If your material falls below this threshold, you face continuous auxiliary fuel costs to maintain minimum chamber temperatures. Engineers typically measure this as the Lower Heating Value (LHV). Always conduct independent laboratory tests on multiple samples to determine the true LHV before engaging equipment manufacturers.
Accurate capacity planning prevents catastrophic engineering errors. You must calculate the maximum continuous rating (MCR) for the primary combustion chamber. Compare this baseline metric against your seasonal variations and operational generation peaks. Oversizing a unit severely decreases its thermal efficiency. The system burns excess support fuel simply to stay hot when feed rates drop. Conversely, undersizing the unit creates permanent operational bottlenecks. Facilities then must temporarily store excess material. This introduces odor issues, attracts pests, and triggers immediate compliance violations from local health departments.
Emission limits dictate your secondary chamber design and downstream filtration needs. Map out local jurisdictional rules for particulate matter, nitrogen oxides (NOx), sulfur oxides (SOx), dioxins, and furans. These regulations determine the required residence time and temperature. Processing general domestic refuse typically requires a residence time of two seconds at 850°C. However, processing hazardous or medical streams demands a minimum of 1100°C for the exact same duration. This higher temperature guarantees the complete destruction of complex, potentially toxic organic compounds.
Modern thermal systems require advanced automation architectures. Evaluate the necessity for comprehensive PLC/SCADA control networks. Continuous Emission Monitoring Systems (CEMS) utilize integrated IoT sensors to track flue gas composition in real time. This raw data proves daily regulatory compliance to environmental authorities. Furthermore, strategically placed sensors monitor outer shell temperatures. This tracks heat transfer and predicts refractory degradation. Early detection prevents catastrophic equipment failures and prevents highly expensive, unscheduled plant downtime.
High-volume refuse demands extremely robust handling mechanisms. Moving grate and mass-burn technologies dominate the heavy infrastructure sector. They effortlessly process heterogeneous, unsorted streams. A massive municipal waste incinerator handles wildly varying object sizes without any upstream shredding requirements. The primary trade-off involves a massive physical footprint and high initial capital costs. Planners frequently compare mass-burn units against emerging gasification techniques. Gasification produces cleaner synthetic gas (syngas). Yet, traditional mass-burn remains the proven, bankable standard for municipal contracts spanning multiple decades.
Chemical processing and manufacturing plants generate complex, hazardous byproducts. These demanding environments require highly specialized handling. Rotary kiln and circulating fluidized bed (CFB) configurations serve this distinct market. A properly scaled industrial waste incinerator effectively manages toxic, halogenated, and highly abrasive materials. Rotary kilns utilize a slightly inclined, rotating primary chamber. This constantly tumbles the material, ensuring complete burnout of thick sludges and dense liquids. CFB systems excel at burning homogenous, low-grade solid fuels. They provide excellent temperature uniformity and inherent acid gas neutralization within the sand bed.
Agricultural, veterinary, and medical sectors demand uncompromising biosecurity. Static hearth and controlled-air pyrolytic systems fit these rigorous requirements. A specialized animals waste incinerator routinely processes high-moisture mortality loads. Operators achieve absolute sterilization thresholds to prevent catastrophic pathogen spread. These systems deploy heavy, mechanically sealed loading rams to eliminate cross-contamination risks. The controlled-air process starves the primary chamber of oxygen. It slowly turns the biological material into a combustible gas. This gas then burns completely in a highly oxygenated, ultra-high-temperature secondary chamber.

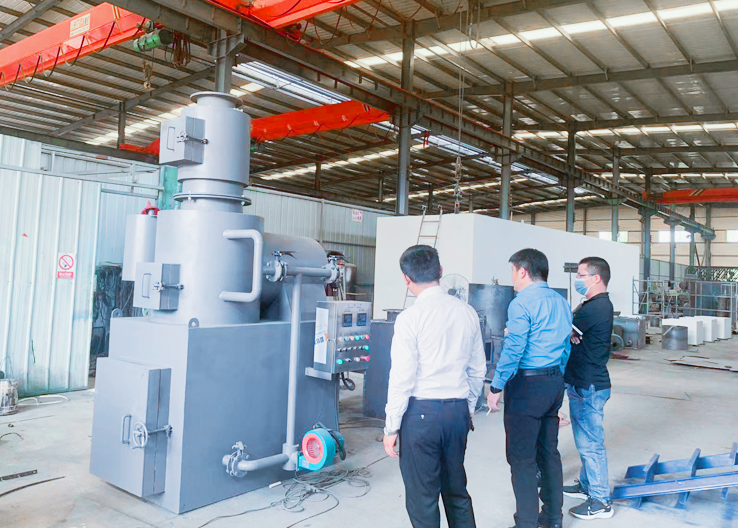

Remote and isolated facilities face unique logistical hurdles. Mining camps, distant military bases, and island communities rely on modular, containerized batch systems. These robust general waste incinerators offer remarkably rapid deployment. They require minimal civil engineering and virtually no permanent concrete infrastructure. Buyers must accept specific engineering trade-offs. Decentralized units deliver noticeably lower thermal efficiency compared to large-scale continuous plants. Many small-scale systems also rely on manual ash removal. This increases daily labor costs and heightens operator exposure to potentially hazardous dust.
Technology Type | Primary Application | Optimal Feedstock Suitability | CapEx Level | Core Engineering Advantage |
|---|---|---|---|---|
Moving Grate | Municipal solid refuse | Heterogeneous, entirely unsorted refuse | Very High | Handles massive daily volumes without pre-treatment |
Rotary Kiln | Industrial manufacturing | Thick sludges, liquids, toxic solids | High | Exceptional physical mixing and complex chemical burnout |
Controlled-Air Pyrolytic | Medical / Agricultural sites | High moisture, infectious pathogen loads | Medium | Uncompromising biosecurity and extremely clean emissions |
Containerized Batch | Remote camps / Islands | General mixed domestic camp refuse | Low | Rapid deployment and easy physical mobilization |
Modern thermal treatment operates as a vital energy generation tool. An incinerator waste heat boiler captures high-temperature thermal energy escaping through the exhaust stack. As the hot gas travels across the internal boiler tube banks, the system transfers heat to circulating treated water. This physical process generates either high-pressure steam or pressurized hot water. Capturing this otherwise wasted energy drastically improves the overall thermal efficiency of the entire plant installation.
Planners must decide exactly how to utilize recovered thermal energy. Cogeneration, or Combined Heat and Power (CHP), routes high-pressure steam directly through a turbine generator to produce electricity. This complex approach suits large-scale municipal operations with grid access. Alternatively, direct heating utilizes the steam for district heating networks or nearby industrial processes. Direct heating completely avoids the massive CapEx of steam turbines. It offers higher overall energy conversion efficiency, provided a local heat off-taker exists nearby.
Energy recovery inherently introduces severe maintenance challenges. High-temperature chloride corrosion represents an inescapable technical reality. Processing streams heavy in PVC plastics or halogenated compounds creates aggressive acid gases. These gases attack the boiler tubes, causing rapid pitting and subsequent structural failure. Fly ash accumulation causes heavy fouling, which insulates the metal tubes and drops heat transfer efficiency. You must specify appropriate high-nickel tube metallurgy and integrate automated acoustic soot-blowing systems to mitigate these ongoing risks.
To justify the massive integration costs of recovery systems, calculate the exact energy offset. Model the expected reduction in your reliance on primary external utilities. Use thermodynamics formulas to convert the calorific value of your daily throughput into available steam tonnage. Deduct the parasitic thermal losses of the system itself. Then, monetize that exact steam volume against current local natural gas tariffs. This exact calculation reveals your financial return and dictates your project payback period.
A comprehensive CapEx budget extends far beyond the core combustion unit. Allocate funds across several mandatory engineering disciplines. The primary and secondary combustion chambers form the baseline equipment cost. Next, factor in the emission control systems. These scrubbers and baghouses easily consume 40% of the entire equipment budget. Do not underestimate heavy civil engineering works. You must fund specialized concrete foundations, heavy structural steel, and towering stack erection. Finally, budget heavily for the integration of automated feed rams, ash conveyors, and the central control room infrastructure.
Long-term OpEx dictates the ultimate financial survival of your project. Calculate the ongoing costs for auxiliary diesel or natural gas. Operators consume this fuel during mandatory cold startups and constant temperature maintenance. Estimate the replacement intervals for all internal refractory linings. Castable refractories degrade from thermal shock and require highly skilled masonry labor to repair. Add the baseline electricity consumption for massive high-horsepower induced draft (ID) fans. Finally, account for chemical sorbents like urea, hydrated lime, and activated carbon required for continuous flue gas scrubbing.
Project developers aggressively leverage external funding to offset intimidating upfront costs. Explore available government infrastructure grants for municipal upgrades. Investigate specific tax incentives designed to promote active landfill diversion. If your system incorporates significant energy recovery, you likely qualify for tradable Renewable Energy Certificates (RECs). Compliant thermal destruction drastically reduces methane emissions compared to standard landfilling. This environmental benefit potentially qualifies the project for lucrative, verified carbon credits on the open trading market.
Thermal processing physically reduces refuse volume by up to 90%, but it does not eliminate mass entirely. Budget for mandatory secondary disposal liabilities. Bottom ash remains generally benign. Operators often repurpose it as aggregate base for road construction, entirely eliminating disposal fees. Fly ash presents a severe financial liability. It contains highly concentrated heavy metals and unburned toxic compounds. Authorities classify this air pollution control residue as hazardous waste. It requires expensive chemical stabilization before transport to specialized, highly regulated landfills.
Your binding contract structure heavily influences daily operational success. Ensure vendor SLAs mandate strict, guaranteed technician response times for critical component failures. Thermal plants cannot sit idle without immediately causing severe upstream bottlenecks. Demand clearly defined operational uptime metrics within the initial contract language. Financially penalize vendors for unexpected downtime caused by premature equipment failure. Clear SLAs legally force the manufacturer to prioritize robust engineering during the initial design phase.
The internal refractory lining absorbs the most physical abuse of any plant component. Scrutinize all OEM claims regarding expected refractory lifespan. Demand verified operational case studies from sites processing identical refuse profiles. Ensure a highly transparent, predictable supply chain exists for replacement firebricks, specialized castables, and proprietary chemical sorbents. A favorable upfront capital quote quickly destroys your budget if you face exorbitant markups on mandatory replacement parts or experience months-long delays for custom-cast internal shapes.
Procurement teams must consciously choose between turnkey providers and fragmented sourcing strategies. Buying the combustion unit from one manufacturer and the wet scrubber from another introduces severe mechanical integration risks. If emission limits fail during commissioning, fragmented vendors inevitably blame each other. Utilizing a single-source turnkey provider massively simplifies complex project management. It establishes a single point of legal accountability for overall system performance, absolute emission compliance, and final daily throughput guarantees.
Thermal treatment projects almost universally face intense local opposition. Fierce community pushback halts projects for years. Mitigate this existential risk through radically transparent Environmental Impact Assessments (EIA). Engage the local community early in the design phase. Deploy advanced visual dispersion modeling software to prove modern emission controls protect local air quality. Navigating prolonged zoning disputes and public consultation phases requires extreme patience, clear communication strategies, and unassailable scientific data.
Complex heavy industrial builds face massive inherent timeline risks. Project managers must control lead times aggressively. Custom-cast refractory materials and specialized alloy boiler tubes take several months to fabricate globally. During the commissioning phase, you require highly specialized labor. This includes experienced refractory masons and certified high-pressure pipe welders. Lock in these specialized contractors months early. Build generous time buffer periods into your primary Gantt chart to absorb inevitable supply chain disruptions without jeopardizing your contractual launch date.
Human error poses the absolute greatest risk to plant longevity. Mitigate this danger through rigorous, standardized operating procedures. Operators must know exactly how to handle hazardous feedstock safely using heavy machinery. They must understand precisely how to manage sudden thermal excursions if highly volatile liquids enter the primary chamber. Execute frequent, mandatory drills for emergency plant shutdown procedures. Investing heavily in continuous simulator training protects your massive capital investment and ensures uninterrupted regulatory compliance.
Commission an independent, third-party material audit immediately to secure exact compositional and moisture data points.
Engage a specialized environmental engineering firm to draft a localized, site-specific feasibility study.
Prioritize detailed 10-year lifecycle CapEx/OpEx forecasting models rather than selecting the lowest basic upfront vendor quote.
Initiate preliminary discussions with local environmental regulators to accurately map exact air permitting and zoning timelines.
A: A well-maintained commercial system typically operates for 20 to 25 years. This lifespan strictly requires adherence to rigorous maintenance schedules. Operators must replace the internal refractory lining every three to five years and regularly upgrade PLC controls. Processing highly corrosive or abrasive materials without proper pretreatment significantly reduces this operational lifecycle.
A: Integrating heat recovery increases the physical facility footprint by approximately 20% to 30%. The boiler requires significant vertical clearance for tube banks, heavy steam drums, and associated water treatment skids. Space must also be allocated for turbine generators or heat exchanger networks if the site utilizes cogeneration or direct heating.
A: Modern municipal systems meet stringent local environmental directives. The EU Industrial Emissions Directive strictly caps Particulate Matter at 10 mg/Nm³, NOx at 200 mg/Nm³, and highly toxic Dioxins/Furans at 0.1 ng I-TEQ/Nm³. Achieving these exact limits requires integrating advanced multi-stage dry or wet chemical scrubbing systems.
A: No. Standard decentralized units are engineered strictly for typical domestic refuse. They generally operate at 850°C. Hazardous chemicals and complex organic compounds require specialized secondary chamber temperatures exceeding 1100°C with an extended residence time to ensure complete thermal destruction and prevent highly toxic gas release.
A: The average payback period ranges tightly from three to six years. ROI is generated entirely by eliminating external rendering contracts and heavy transportation fees. Avoiding off-site disposal fees and completely eliminating associated disease transmission risks during strict biosecurity lockdowns massively accelerates the direct financial return.
A: Thermal treatment fundamentally reduces the original refuse volume by 85% to 90%, and the physical mass by roughly 70% to 80%. Therefore, for every 100 tons of typical municipal or general refuse processed, operators generate approximately 20 to 30 tons of inert, heavy bottom ash.
